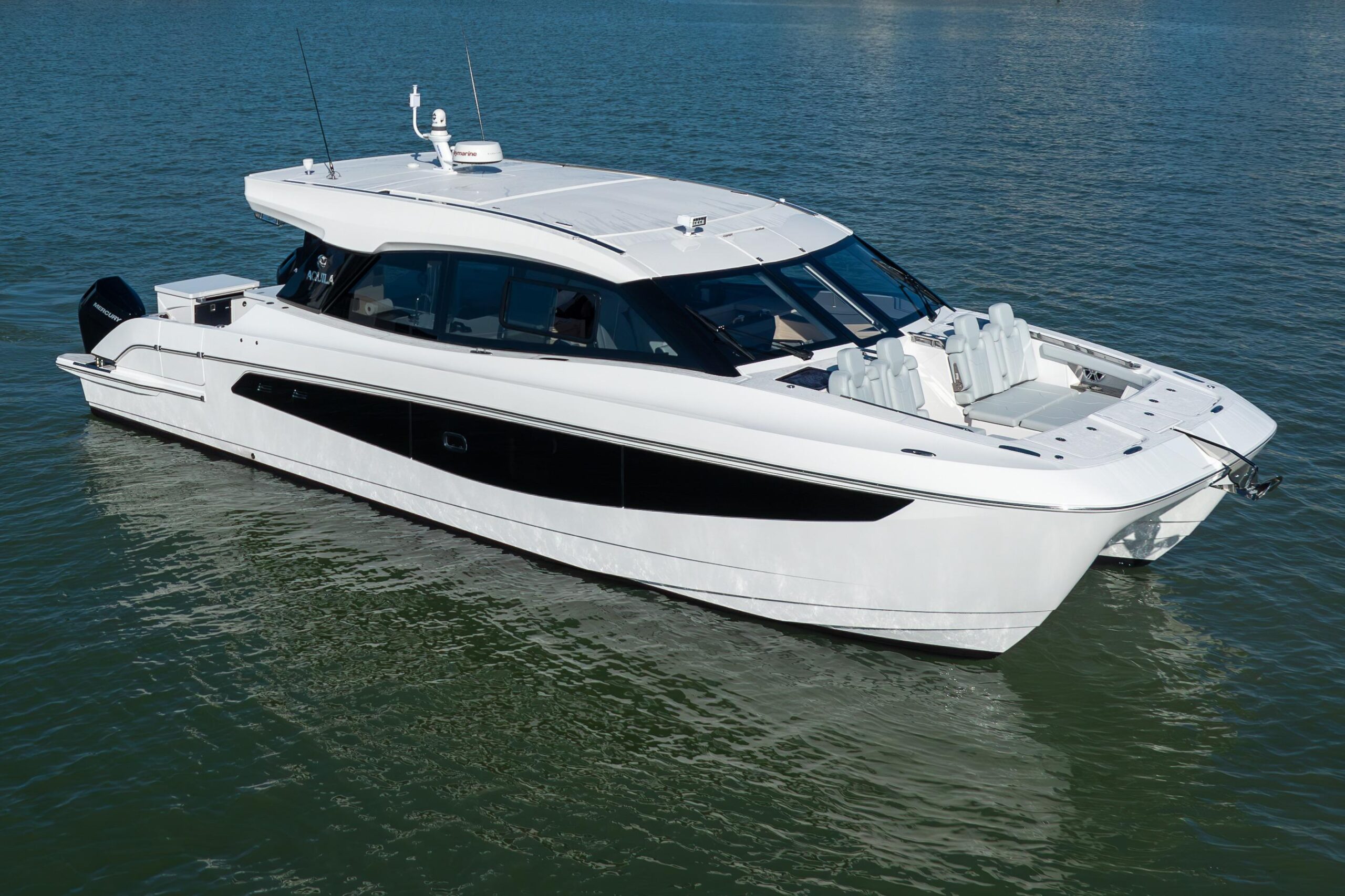

AQUILA 42 COUPE POWER CATAMARAN Specifications

Features

• An exceptional performing and seaworthy double

stepped hull shape providing first in class stability

and fuel efficiency

• Aquila Hydro Glide carbon fiber semi foiling system

providing first in class performance, comfort, and

fuel efficiency

• The perfect balance of indoor and outdoor spaces,

all in a single level living package

• Spacious interior cabins with hull side windows

offering excellent views of the water

• Expansive electric opening fiberglass sunroof

providing protection from sun and weather (option)

• C-Zone digital switching system for DC powered

components

• Ability to choose between Mercury outboard

power or Volvo Penta diesel propulsion

• Easy access on and off from docks with standard

port and starboard opening cockpit doors

Interior Layout

• Single level deck plan with large cabins in each

hull

• Master cabin in port hull with VIP cabin in

starboard hull – each with walk in shower, vanity

area, and fresh water flush toilet

• Salon area with L-shaped seating to port with

fixed table that can convert to bed with fill in

cushion

• Large tempered glass windows offering full 360

degree views

• Sliding aft salon door providing a connection

between aft cockpit and interior when opened

• Galley area to starboard providing microwave, sink,

and storage cabinets throughout

• Carbon fiber central electric actuated hatch/door

providing access to forward bow seating

• Comfortable helm seating for two with forward

facing port side lounger adjacent to the helm

seating

Hull and Deck Features

• Double stepped hull design offering best in class

offshore handling capabilities

• Carbon fiber Aquila Hydro Glide semi-foiling

system

• Comfortable and protected bow seating that

comfortably seats up to 4 people

• Aft starboard fiberglass storage box including

trash can and Corian surface with ability to add

optional fridge

• Aft convertible sun lounger providing ability to sit

facing forward or convert to sun lounger with

storage below

• Designated area for optional electric BBQ

• Stainless steel railings and handholds in AIS316

• Opening port lights installed in hull side windows

• PVC rub rail with 316 stainless steel insert offering

all round protection

• Windscreen in tempered glass with variable speed

windscreen wiper

• Bow deck hatches allowing access to anchor

chain area and windlass

• Deck fill plates in 316 stainless steel – 1x water – 2x

fuel – 2 x waste

• Stainless steel mooring cleats thru bolted (10 Total)

• Well placed ergonomic handrails in 316 stainless

ensuring secure movement onboard

• LED navigation lights, running lights and anchoring

light

• Custom stainless steel retractable swim ladder

with teak steps at aft deck swim platform

• Aft cockpit and bow area all self draining

• Aft cockpit with three panel sliding door

• Optional synthetic marine decking throughout all

main level exterior and interior deck space

• Mechanical room/diesel engine access through

large deck hatches

• LED courtesy lighting located throughout

• Easy lift gas shocks for all large hatches

Aft Deck and Cockpit

• Multiple panel sliding door lockable from interior

and exterior – entrance to salon

• Sun lounger with convertible back rest and

storage inside

• Forward facing seating to port

• Fiberglass aft storage to starboard with pull out

trash can and optional fridge

• Flip down/up fiberglass engine well covers

• Mechanical/diesel engine room access from deck

hatches

• Marine waterproof 7.7” Fusion speakers (2)

• Port and starboard side boarding gates with robust

stainless steel hinge and fittings

• LED courtesy lighting

• Overhead LED lighting

• Starboard side storage aft of sliding door with

optional BBQ and fridge/freezer

• Integrated side deck steps providing easy access

to raised side decks

• Stainless steel gates (2) at center and starboard

side

• Optional retractable canvas sunshade system

with canvas material

• Self draining cockpit area

• Shore power inlet supply outlets

• Slide out stainless steel swim ladder with teak

steps

• Fresh water pull out shower (hot/cold)

Mooring System

• Electric windlass (12v-1000W) with hard wired

handheld control at anchor locker

• Polished stainless steel 35lbs anchor with rope

(200ft), galvanized anchor chain (30ft)

• Mooring kit – 6 x fenders and 6 x mooring lines

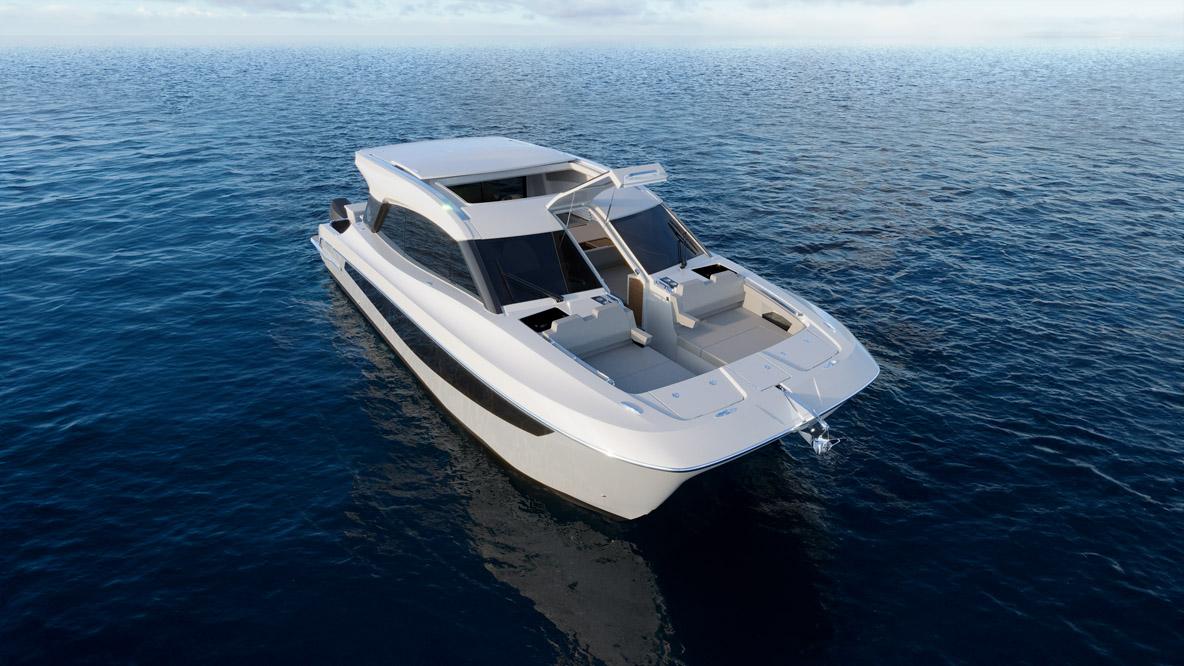

Forward Bow Seating

• Central electric walkthrough opening hatch/door

manufactured in carbon fiber materials to increase

strength and reduce weight providing access to

bow seating

• Forward facing sun lounger seating with head

rests and flip down arm rests

• Cup holders (8)

• Concealed storage areas to outboard sides for cell

phone and cup holders

• Integrated LED courtesy lighting

• Storage under removable cushions at each sun

lounger

• Marine waterproof speakers 7.7” (2)

• Stainless steel handrails

• Optional synthetic marine decking

• Central hatch for access to windlass/anchoring

system

• Port and starboard side wet locker storage for

fenders and mooring lines

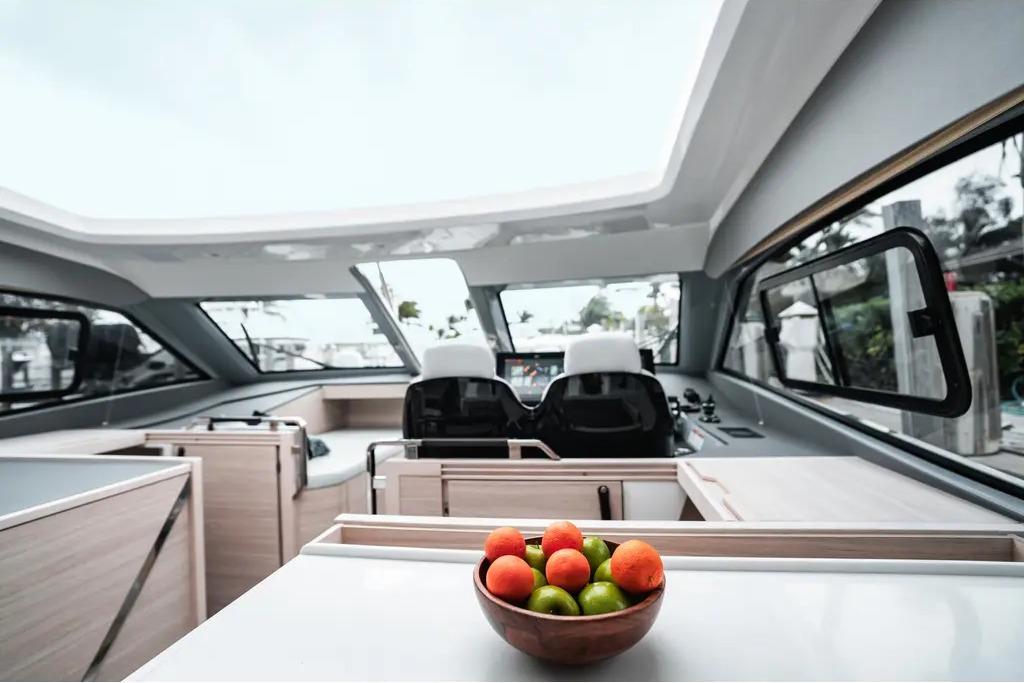

Interior Helm Console / Seating

• Comfortable carbon fiber helm seating including

flip up bolsters and electric seat sliders

• Cup holders (2)

• AC vents for direct air flow (aircon optional)

• Black acrylic helm panel with flush mount

electronics installation

• Wireless phone charger (1)

• Stainless steel hand hold

• Recessed foot rests

• Manual slide opening window next to helm

• Variable position steering wheel offering multiple

function use controls at your finger tips

• Magnetic handheld compass

• USB and USB-C outlets

• Port side forward facing lounger seating adjacent

to helm seating

• Windshield wiper system connected to fresh

water supply with control at helm

• Ergonomically positioned throttle and joystick

controls

Salon / Galley

• Manual blinds for port and starboard side

windows

• Laminate finished cabinetry with solid wood

capping throughout with accented wall and ceiling

coverings

• Manual hi/low table with fold out sections – can

convert to sleeping area with fill in cushion

• Multi-Zone sound system with Fusion head unit

and 4 x flush mounted 7.7” speakers

• Upholstered panel ceilings with decorative LED

accent lighting

• Comfortable L-shaped seating to port

• Storage locker under floor in galley/salon area

• Optional expansive electric sunroof

• Designated drop down TV system from ceiling

(option)

• Carbon monoxide alarm

AC power sockets under seating

• Galley area to port side including:

• Corian work surface

• 130L/4.5 cu. ft. fridge/freezer

• 30L/1.1 cu. ft. microwave

• Storage drawers and cabinets throughout

• Wash basin with stainless steel faucet

• AC power outlets

• Integrated stainless steel handrails under Corian

countertops

• Optional synthetic marine decking

Owner and VIP Guest Cabin

(owner cabin on port side)

• Large hull side window providing natural light into

cabin with manual operated blinds

• Laminate finished cabinetry with solid wood capping

throughout with accented wall and ceiling

coverings

• Private access door to each cabin for privacy

• Aircon vents with aircon display/controller (option)

• Opening ventilation hatch in ceiling with concealed

manual blind

• LED reading lights (2)

• LED overhead ceiling lights

• Storage shelves, lockers and drawers with additional

storage under cabin mattress

• Memory foam mattress

• Cabin mattress size: Master cabin: 76” x 60”

(194cm x 153cm) VIP guest cabin:76” x 60” (194cm

x 153cm)

• USB charging ports

• Synthetic wear resistant flooring offering

maintenance free natural look

• Upholstered panel ceilings with decorative LED

accent lighting

• Carbon monoxide alarm in each cabin

• AC power sockets (2)

• Large hanging locker with storage

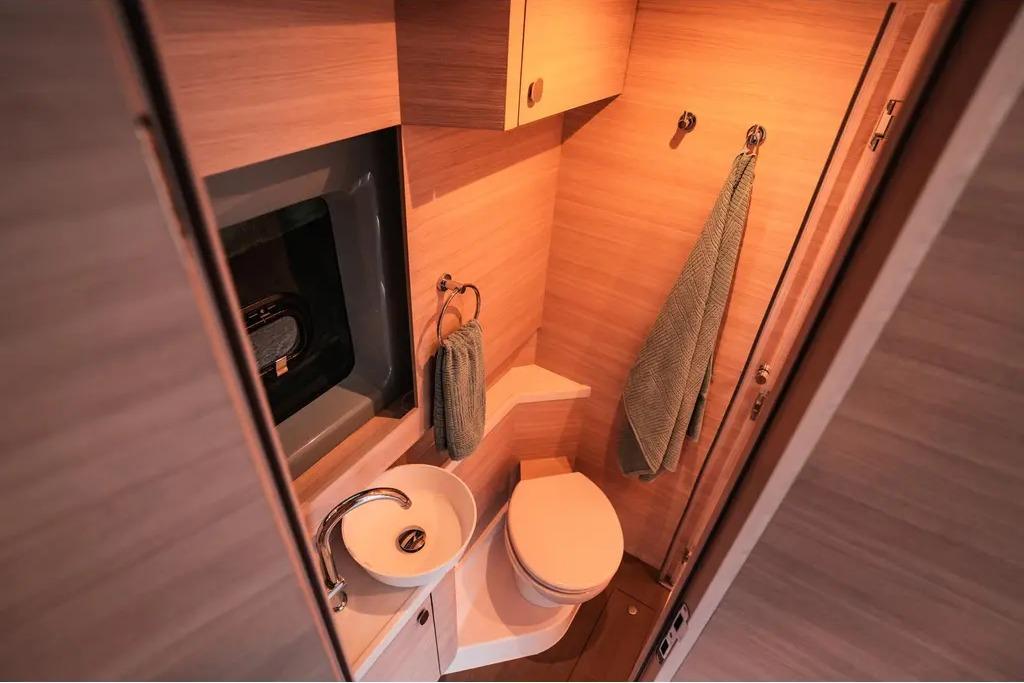

• Separate bathroom/shower area including:

• Hull side window with blind

• Opening portlight window for ventilation

• Bathroom vanity with sink and faucet

• GFCI protected outlets

• Toothbrush and towel holders

• Corian countertop

• Fresh water electric flushing toilet

• Walk in shower with door and port light

opening window

• Mirror

Mechanical / Diesel Engine Rooms

(diesel engines optional)

• Automatic fire suppression heat activated system

with alarm monitors at helm station

• Engine fuel system filters

• LED lighting

• Thru hulls with strainers for water supply to

primary equipment

• Automatic bilge pump in each engine room

• Excellent all around engine and systems access

for ease of maintenance

• Additional storage for storing water toys and water

sports equipment

Electrical System

• C-Zone DC digital switching system

• Inverter/battery charger Mastervolt 200A/3500W

• Master control panel for 12v and shore power service

• Dedicated engine battery chargers

• Remote battery master switches at panel

• Engine parallel control remote switch

• Dedicated engine start batteries (2 x AGM)

• House batteries = 2 x 230 A/h AGM

• 30A shore power supply inlets (2)

• Galvanic Isolator protection system

Fuel System

• Fully independent Heavy Gauge aluminum tanks

totaling 1552 Liter/410 US G with gauge at helm

station

• Manual fuel shut off valves

• Fuel tank vents

• Natural ventilation of locker

• Water and air tight bulkhead separating cabin area

• Fuel filters

Water and Bilge System

• Automatic 12v Fresh Water Pump

• Water heater (1) @ 40L/10.5Gal (only operable from

shore power and/or optional generator)

• 1 x 200 Liter/52 US G fresh water tank

• Transom pull out shower mixer (hot/cold)

• Automatic 12v bilge pumps (6)

Waste System

• Automatic grey water pump connected to each

shower drain for direct overboard discharge

• 2 x 80L/21Gal black water tanks with sea

discharge pumps and dockside pump out

• Black and fresh water levels visible through

C-Zone system
